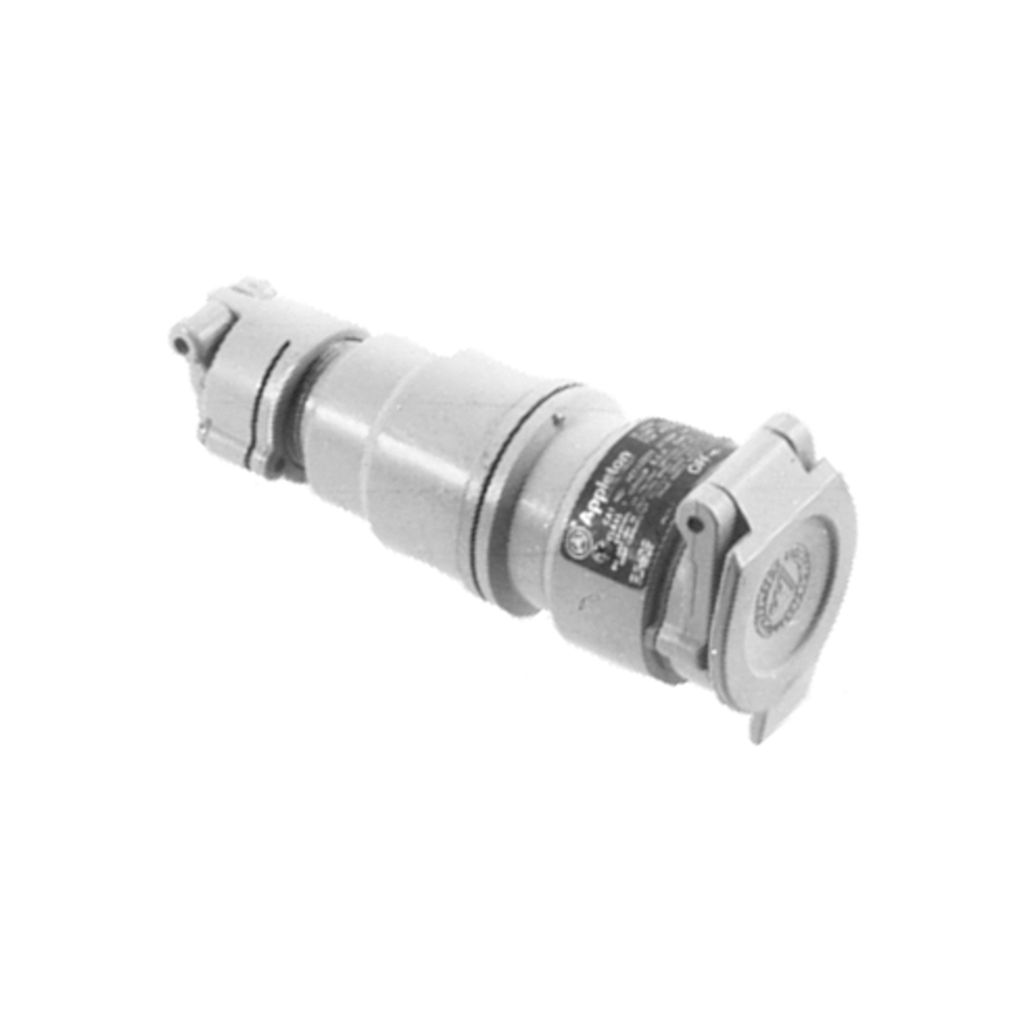

Appleton™ PN ECCLCABLCLMPKIT
Appleton™ PN ECCLCABLCLMPKIT
1
prev
next
Features
- Gasketed spring door cover snaps shut to protect against moisture and combustible dust
- Gasket in receptacle throat seals around plug for protection against environment
- Interior switch cylinder has neoprene O-ring at each end to seal out dust and moisture
- 2 bushings to accommodate different cable sizes
Specifications
- Hazardous Area Classification
- Class I, Division 1 and 2 Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA 3, 3R, 7BCD, 9FG
- Amperage
- 20
- Voltage
- 125 Vac or 250 Vac
- Number of Poles
- 3
- Number of Wires
- 2
- Horsepower Ratings
- 1, 2
- Plug Cable Diameter
- .538 – .639
- Materials and Finishes
- Connector housing is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat
